Scenario 2: Misconfigured Service (Test)

Overview

The Online Boutique application in the test environment appears to be running — pods are up, no crashes — but the checkout flow is broken. Users can browse products and add items to their cart, but completing a purchase fails. A misconfigured service address is preventing the checkout service from reaching the payment service.

What you’ll learn:

Investigate issues where pods are running but the application is not working correctly
Trace service-to-service communication failures
Inspect environment variables to find configuration mismatches
Understand the difference between “running” and “healthy”

Difficulty: Intermediate Time required: 15-20 minutes

The Problem

What’s happening: User browses products (Frontend) -> Adds to cart (Cart Service) -> Attempts checkout (Checkout Service) -> Checkout tries to reach Payment Service (wrong endpoint) -> Checkout fails.

What you know:

The online-boutique-test environment was promoted from a recent build
All pods show Running status — nothing is crashing
Users can browse products and add items to cart
Checkout fails with an error

What you need to find out:

Which service in the checkout chain is failing?
Why is it failing if the pod is running?
What configuration is wrong?

Step 1: Open Workspace Chat

Open the Sandbox workspace
Go to Workspace Chat
Describe the problem to the AI Assistant — for example: “Check the health of online-boutique-test” or “Is anything wrong in the test namespace?”

Unlike Scenario 1, the initial findings may look healthy at first glance. Pods are running, deployments are available. The issue is hidden inside the application’s runtime behavior — which is why describing the user-facing symptom in the next step is important.

Step 2: Describe the Symptom

Since the infrastructure looks healthy, describe the user-facing symptom rather than a specific Kubernetes state.

Sample Prompts

“The checkout flow is broken in online-boutique-test”
“Users are getting errors when they try to purchase items in the test environment”
“Something is wrong with the online-boutique-test namespace — the app is not working correctly”
“Check service connectivity in online-boutique-test”

What Happens Next

The AI Assistant may respond in one of two ways:

Show existing Issues — If the platform has already detected problems (e.g., through background health checks or task runs), the assistant will surface these existing Issues with their findings, severity, and suggested next steps.
Suggest diagnostic tasks to run — If no existing Issues cover the problem, the assistant will suggest tasks like checking pod status, inspecting logs, and reviewing events. You can run individual tasks or let the assistant run them together.

Either path leads to the same result: structured findings about what is wrong.

Typical Diagnostic Tasks

The assistant may suggest or reference results from tasks such as:

Check Pod Status — Confirms pods are running (they are)
Inspect Pod Logs — Looks for error messages in running containers
Check Service Endpoints — Verifies services have healthy backends
Inspect Environment Variables — Reviews configuration injected into pods
Check Recent Events — Looks for warnings

Step 3: Review the Findings

Since pods are running, this investigation requires looking deeper than pod status.

Expected Findings

Finding 1: Pods Are Running (but that is not the whole story)

All 12 pods are in Running state
All deployments show desired replica count
No CrashLoopBackOff detected

Finding 2: Application Logs Show Connection Errors

checkoutservice logs:
  error: failed to charge order: could not connect to
   paymentservice-v2:50051:
   dial tcp: lookup paymentservice-v2: no such host

Finding 3: Environment Variable Mismatch

Environment variable issue detected:
  Deployment: checkoutservice
  Variable: PAYMENT_SERVICE_ADDR
  Current value: "paymentservice-v2:50051"
  Expected: a valid service name (paymentservice-v2 does not exist)

Note: The key insight is that the checkout service is configured with the wrong service address. The DNS name paymentservice-v2 does not exist — the actual service is paymentservice.

Step 4: Analyze the Root Cause

Analysis path: Symptoms (Checkout fails, pods healthy) -> Logs show connection error -> Wrong service address in environment variable -> Root Cause: Configuration error — wrong service endpoint in deployment spec.

What the Evidence Tells Us

Signal	What It Means
Pods running	The container image and code are fine — this is not a code bug
Connection error in logs	A service is trying to reach another service at a wrong address
DNS lookup failure	The hostname `paymentservice-v2` does not resolve — no such Kubernetes Service exists
Only checkout affected	Other services communicate fine; only the checkout-to-payment path is broken

Root Cause

The checkoutservice deployment has the environment variable PAYMENT_SERVICE_ADDR set to paymentservice-v2:50051. There is no Kubernetes Service named paymentservice-v2 in the namespace — the correct service name is paymentservice. When checkoutservice tries to process a payment during checkout, the DNS lookup fails and the order cannot be completed.

This commonly happens when:

Environment-specific configs are copy-pasted with leftover values from a migration
A service was renamed but not all references were updated
A promotion from one environment to another carried an incorrect endpoint

Step 5: Ask for Remediation Guidance

Sample Follow-Up Prompts

“How do I fix the payment service address in checkoutservice?”
“What should PAYMENT_SERVICE_ADDR be set to?”
“Fix the configuration in online-boutique-test”

The Fix

The fix involves correcting the environment variable in the checkoutservice deployment to point to the actual service name:

Corrected Configuration:

env:
  - name: PAYMENT_SERVICE_ADDR
    value: "paymentservice:50051"

Since this environment is managed via GitOps (Flux), the proper fix is to correct the value in the demo-sandbox-online-boutique repository on the test branch. Flux will automatically reconcile the change.

For an immediate fix, you can patch the deployment directly:

kubectl set env deployment/checkoutservice PAYMENT_SERVICE_ADDR=paymentservice:50051 -n online-boutique-test

After patching, the checkoutservice pod will restart with the corrected address.

Step 6: Verify the Fix

Ask the AI Assistant to Verify

“Is the checkout flow working now in online-boutique-test?”
“Check if checkoutservice can reach paymentservice”
“Are there still connection errors in the logs?”

Success Criteria

Checkout service logs show successful payment calls
No “no such host” or “connection refused” errors in logs
All pods still running
End-to-end checkout flow completes successfully

What You Learned

Key Takeaways

Running does not mean healthy. Pods in Running state can still have functional failures. Always check application logs, not just pod status.
Configuration issues are sneaky. They do not cause crashes — they cause incorrect behavior at runtime. Look for connection errors, wrong endpoints, and DNS failures in logs.
Environment variables are common culprits. When services cannot communicate, check how they discover each other — environment variables, ConfigMaps, and DNS entries.
Describe the symptom, not the guess. When you told the AI Assistant “checkout is broken” instead of a specific Kubernetes state, it investigated logs, configs, and events — not just pod status.

Troubleshooting Pattern: Configuration Issues

The pattern: App errors but pods running -> Check logs for connection/config errors -> Wrong address or value? -> If yes: Fix env var or ConfigMap. If no: Check Secrets / Network Policies.

Comparing Scenarios 1 and 2

	Scenario 1: Code Error	Scenario 2: Config Error
Pod status	CrashLoopBackOff	Running
Where the error shows	Container exit code + startup logs	Runtime logs during specific operations
Root cause	Bug in code	Wrong value in configuration
Fix location	Application source code	Kubernetes deployment env var
Detection difficulty	Easy (pod is clearly broken)	Moderate (pod looks healthy)

Next Steps

Ready for the most challenging scenario? In Production, the application and configuration are both correct — but the checkout service is crashing under load due to a database connection pool issue.

-> Next: Scenario 3: Database Connection Failure (Prod)

View Live Chat Export: Scenario 2 — Misconfigured Service (Test) — View the full AI conversation, diagnostics, and findings

Screenshots

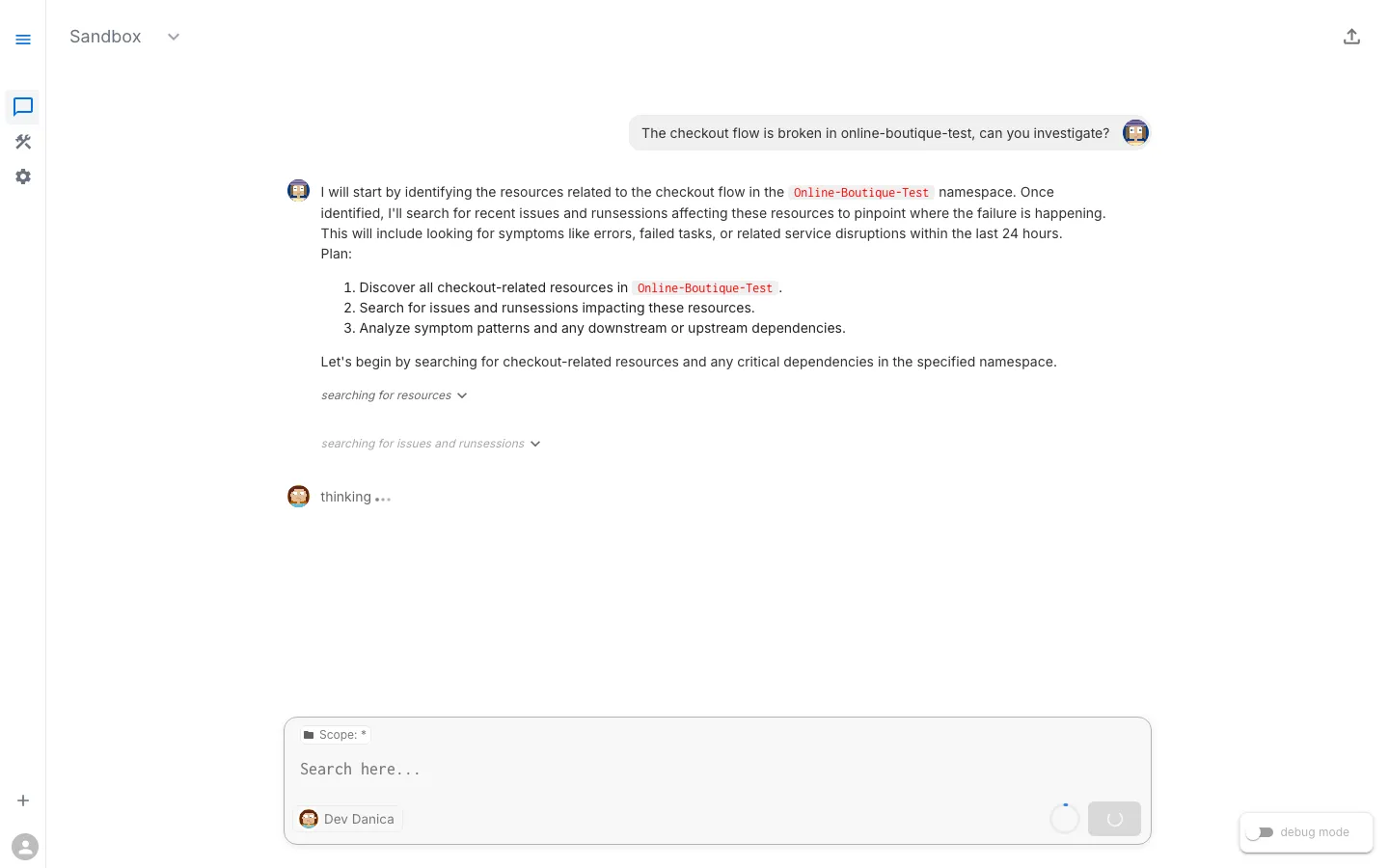

Step 1 — Assistant planning investigation for checkout flow in test

Assistant planning investigation

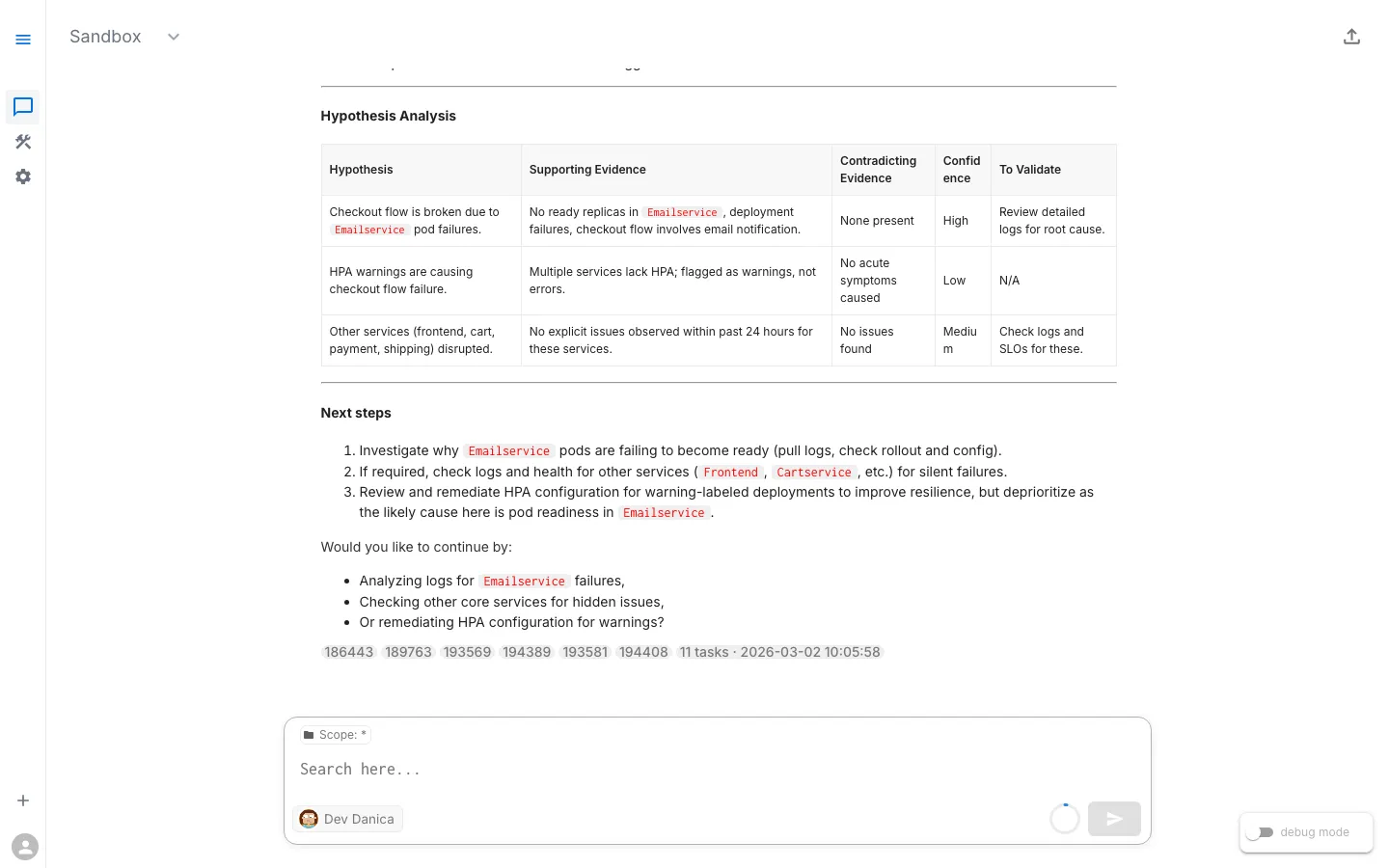

Step 2 — Analysis pinpointing Emailservice pod failures as root cause

Analysis identifying Emailservice failures
