JenkinsX

This page outlines the JenkinsX resources that are available in the Sandbox for developing codebundles.

Repositories & Collaborator Access

Currently two repositories exist that support JenkinsX:

Cluster Repository - The main GitOps repo that configures JenkinsX
Demo App - A sample application that is mangaged by JenkinsX

All codebundle authors must be added as a collaborator on the “Demo App” repository in order to effectively test JenkinsX pipeline functionality. Reach out via Slack or Discord to connect with us to be added as a collaborator or to request additional application resources.

JX CLI Access

When working with multiple Kubeconfigs, you can set the KUBECONFIG environment variable in the jx command, such as KUBECONFIG=author-kubeconfig jx pipeline ls -n jx

The jx cli should be available and accessible with the provided kubeconfig. This utility should have the necessary permissions to list or view jx and pipeline related activities, for example:

Listing pipeline jobs

Copy

$ jx pipeline ls -n jx
Name                                                                                                 URL LAST_BUILD STATUS DURATION
runwhen-contrib/sandbox-jenkinsx-demo-app/main #1694005998381 completed-release                      N/A N/A        N/A    N/A
runwhen/infra-flux-nonprod-sandbox-jx-quickstart-golang-http/master #1693402143058 completed-release N/A N/A        N/A    N/A
runwhen/infra-flux-nonprod-sandbox-jx/main #1693498923664 completed-bootjob                          N/A N/A        N/A    N/A
runwhen/infra-flux-nonprod-sandbox-jx/main #1693499039486 completed-bootjob                          N/A N/A        N/A    N/A
runwhen/infra-flux-nonprod-sandbox-jx/main #1693499548239 completed-bootjob                          N/A N/A        N/A    N/A
runwhen/infra-flux-nonprod-sandbox-jx/main #1693499828520 completed-bootjob                          N/A N/A        N/A    N/A
runwhen/infra-flux-nonprod-sandbox-jx/main #1693499939820 completed-bootjob                          N/A N/A        N/A    N/A

Reviewing the latest admin log

Copy

$ jx admin log -n jx
? select the Job to view:  [Use arrows to move, type to filter]
> #10 started 35m0s Succeeded
  #9 started 38m0s Succeeded
  #8 started 49m0s Succeeded

WebUI Access

The following interfaces may require user/password. This can be provided upon request via Slack or Discord.

JenkinsX provides a few different interfaces that can be used instead of the jx cli. These are available via the kubectl port-foward command:

Lighthouse WebUI (port-forwarded to localhost:8082): kubectl port-forward svc/lighthouse-webui-plugin -n jx 8082:80

Lighthouse Web UI ‌

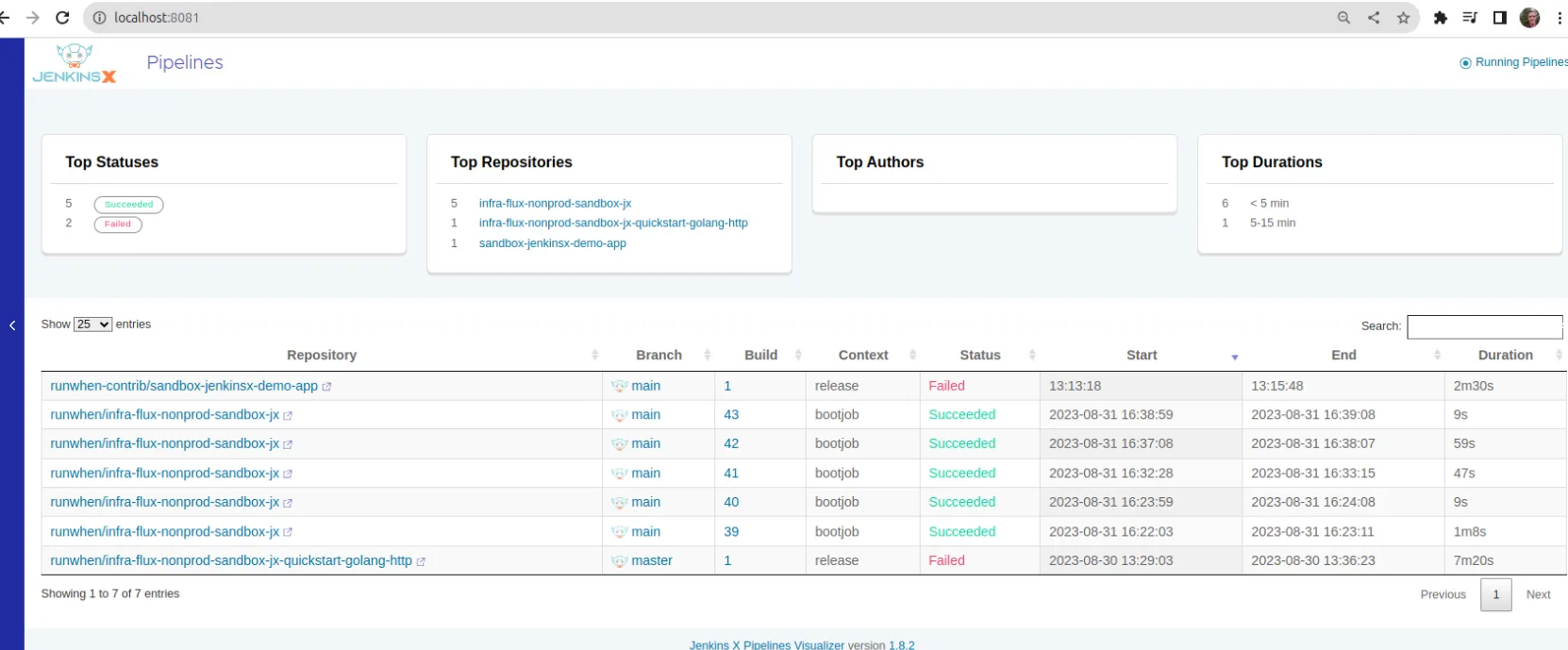

Pipeline Visualizer (port-forwarded to localhost:8081): kubectl port-forward svc/jx-pipelines-visualizer -n jx 8081:80

JenkinsX Pipeline Visualizer ‌
